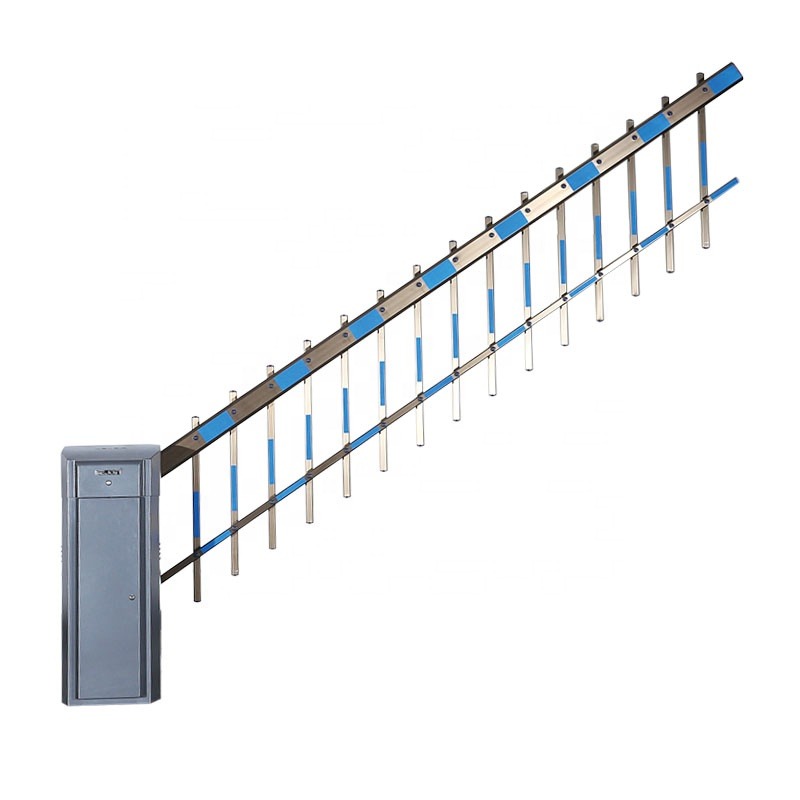

High Durable Brushless DC Servo Motor Barrier Gate

1 Set
MOQ
$600.00(>=1 Sets)
Precio
High Durable Brushless DC Servo Motor Barrier Gate
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Boom: Optional
motor: Variable Frequency Motor
Color: Gold,Silver,Black,Yellow,Jacinth
Insulation grade: F
Certificate: CE; ISO9001:2008
Cabinet: 2mm Zinc Plated Steel
Warranty: 2 Years
Usage: Road Traffic Safety
Feature: High Durable
Keyword: barrier gate
Información básica
Certificación: CE; ISO9001:2008
Pago y Envío Términos
Packaging Details: Paper Carton or Wooden Box
Supply Ability: 10000 Unit/Units per Month barrier gate
Descripción de producto

DC Brushless servo motor barrier gate with frequency conversion control



Product Description



Product Application

Suitable for indoor as well as outdoor parking area Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.




Functions&Features
1.DC permanent magnet synchronous motor(PMSM),servo control.
2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7.More sensitive and reacting faster when reversing on obstacles.
8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
9.LCD display controller, more humanized operation and setting.
10.NO/NC wire control signal input are optional.
11.Integrated RS485 communcation, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.

Technical Data
Model WJCB02E WJCB02H WJCB02I
Running Speed 0.4S~0.9s 0.9s~5s 5s 5s 5s 5s 3s~5s 5s 5s 5s 5s
Boom Type Straight Straight 90° Folding 180° Folding 2 Fence 3 Fence Straight 90° Floding 180° Folding 2 Fence 3 Fence
Max Boom Length 2m~3.5m 3.5m~6m 5m 4m 4.5m 4m 4.5m~8m 6m 5m 6m 5m
Input Voltage AC 220V±10%, AC110V
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C~+85°C
MTBF 10000000 times
Duty Cycle 100%
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 300W
Max Motor Speed 90r/min
Max Torque 480N.m

Commercial Variable Frequency Mechanism




Advanced Features
  • Powerful Commercial Variable Frequency Controller
  • Cabinet adopts electroplating and double-layer painting process
  • Safer: New upgrade of auto reversing function
  • New Balanced Structure: Soft Touch and Zero Pressure
  • Subatantially reduce the damage to the vehicle and people

  • Hit but won't hurt the car
  • Round foaming arm complete protect
  • Solve the vehicle be damaged by hitting
  • Variable frequency barrier works more smoothly than standard barrier models
  • And its operation life lasts 30% longer than the standard models
