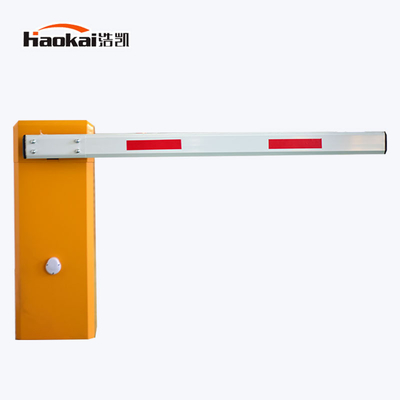

ISO Certificate Car Parking Lot Barrier Gate With Straight / Folding Straight Gate / Barrier Arm Barrier Arm

1 Set
MOQ
$200.00(1 - 9 Sets) $180.00(>=10 Sets)
Precio
ISO Certificate Car Parking Lot Barrier Gate With Straight / Folding Straight Gate / Barrier Arm Barrier Arm
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: Straight arm barrier gate
Product name: ISO certificate car parking lot barrier gate
Housing Color: Yellow/Red/Black/Orange (OEM)
MTBF: 5 million cycles
Certificate: ISO9001 CE
Housing Matercial: 2mm cold-roller sheet
Max boom length: 6m
Body weight: 50kg
Arm speed: 3-6s
Housing Painting: Powder coating/ lacquer that bake
IP Grade: IP54
Información básica
Certificación: ISO9001 CE
Model Number: Straight arm barrier gate
Pago y Envío Términos
Packaging Details: Housing size: length:34cm wide;29cm hight:94cm Package size: length:39cm wide;33cm hight:105cm 240set/container
Supply Ability: 5000 Set/Sets per Month
Descripción de producto
Product Description

ISO certificate car parking lot barrier gate with straight/folding/fence arm

Voltage : 110v-220v±10%
Reted Power: 85W
Motor Type: AC Motor
Frequency: 220AC/ AC110 50-60HZ
MTBF: 5000000 cycles
IP Grade: IP54
Colour: OEM

                               ISO certificate car parking lot barrier gate with straight/folding/fence arm

              ISO certificate car parking lot barrier gate with straight/folding/fence arm is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 2mmcold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle. Here introduce more details as below:

Technical Parameters

Voltage: 110V/220V±10%
Rated Power: 85W
Motor type: AC motor
Frequency:220AC/AC110 50-60HZ
MTBF: 5000000 cycles
Body weight: 50KG
Working temperature: -30℃ to 80℃
Remote control distance: ≤30M
Arm speed: 3s/6s
Arm materials: Aluminum alloy
Max boom length: 6m
IP grade: IP54
Warranty: 12 months

Suitable for indoor as well as outdoor parking area Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc

                                                                 Take of your front to see the barrier 's front

                                        left side
                                                                     right side

                                                            Optional Arm Type

            1:Two fence arm

                    Run speed: 3s 1m-4m

                                        6s  4m-6m

           2: Three fence arm

                     Run speed: 3s  1m-4m

                                         6s 4m-6m

              3:Four fence arm

                       Run speed: 6s  4m-6m

             4:90 degree arm

                     Run speed: 3s 1m-4m

                                         6s 4m-6m

          5:180 degree folding arm

                   Run speed: 3s 1m-3.5m

                                       6s  4m-6m

             6:Big two fence arm

                      Run speed:  6s  4m-5.5m

The features

A. Steady function, sensitive reaction, low noise
B. Surface is shaped by 13 process flow, and use import paint. Excellent rust-proof, waterproof ability.
C. High sensitive limit switch, barrier boom can be instant turn on and off, accurate location.
D. Control system adopts hi-tech digital chip technology.
E. The anti-collision function, protecting the passenger
F. The inductive function ,with the digital vehicle detector

G. The barrier is provided with remote controller, manual button, and   digital vehicle detector

The core



Installation
Related Products
We have straight barrier gate, except that ,also have fence boom barrier gate and folding barrier gate.
We can do any size and colour if you want.
      Main Technology Parameters
Voltage
110v-220v±10%
Reted Power
85W
Motor Type
AC Motor
Frequency
220AC/ AC110 50-60HZ
IP Grade
IP 54
Main Technology Parameters
Voltage
110v-220v±10%
Reted Power
85W
Motor Type
AC Motor
Frequency
220AC/ AC110 50-60HZ
IP Grade
IP 54
Main Technology Parameters
Voltage
110v-220v±10%
Reted Power
85W
Motor Type
AC Motor
Frequency
220AC/ AC110 50-60HZ
IP Grade
IP 54
Main Technology Parameters
Overall size
150cm×36cm×20cm
Screen size
60cm×36cm×8.5cm
Packing & Delivery

Pcking: carton or wooden case(plywood if you want)

                   Housing size: length: 34cm wide : 29cm height: 94cm
                   Package size: length: 38cm wide : 33cm  height: 98cm
Company

                                           HeBei HaoKai intelligent technology Co.,Ltd.

                   HeBei HaoKai intelligent technology Co.,Ltd. is a professional engaged in gate system, intelligent parking lot Managment system and parking guidance system, channel management system, traffic facilities construction and installation of monitoring, a set of electronic product development, production, sales, installation services as one of the integrated enterprise.



Workshop

HaoKai Intelligent Technology Renqiu Co.,Ltd is founded in 2014, The factory is loaded in Daxing district, Brijing. But in the planning of Beijing's economic environment , the factory moved in Yucun Township, Renqiu City ,Heibei Province. HeBei Province. The center of triangle is loaded in BeiJing,Tian Jin ,Shijiazhuang.We have our own technical department, production department , after-sales department. There are 200 employees total. We can product 5000 set/ month because we have a strong supply capacity.

The Exhibition

Certifications

We have certificate about CE, ISO.

The case:
Our Service

1-Does the parking barrier gate easy to install?
Yes,it is very simple,first,we have user manual to you,then we have engineer support you online, untill you finish the project.
2-How about the guarantee and after sale service?
We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who can speak fluent English language
3-How long is the delivery time?
For standard item,10-50 sets:3 working days,50-100 sets:5 working days,
200-500 sets:7-10 working days.For special item, or need custom design package or logo, need 3-5 working days longer
4-How about the payment terms?
TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.
5-Can you do OEM service?
Yes!
We can make colour and LOGO according to customer's requirement.
We can do "Personal Tailor"!


HaoKai Intelligent Technology Renqiu City Co.,Ltd.

Shirley

We Chat:0086 15932259367

Skype: 0086 15932259367
