Inicio /Productos/Bloqueador de espacios de aparcamiento/Automatic Remote Control Parking Lock Dry Battery Rechargeable Battery 3000KG

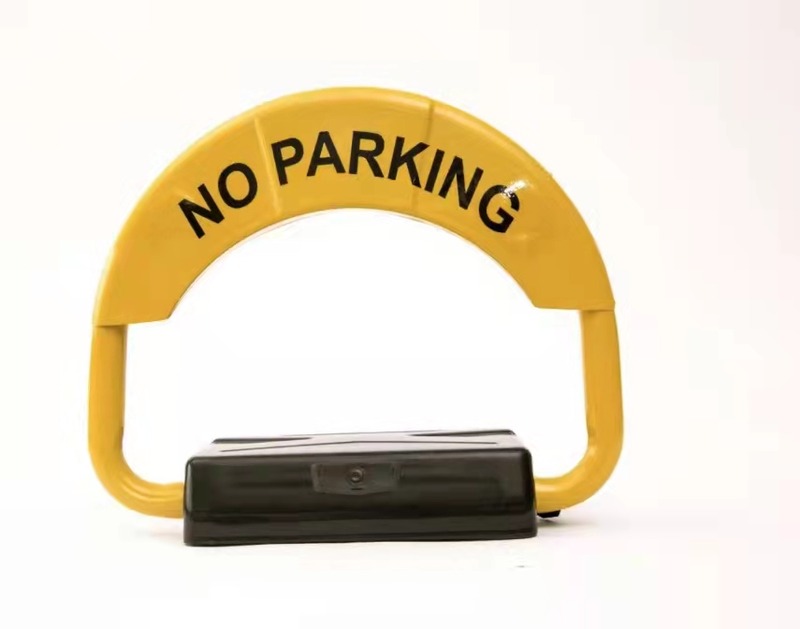

Automatic Remote Control Parking Lock Dry Battery Rechargeable Battery 3000KG

1 Piece
MOQ
$40.00(1 - 99 Pieces) $38.00(100 - 499 Pieces) $37.00(>=500 Pieces)
Precio
Automatic Remote Control Parking Lock Dry Battery Rechargeable Battery 3000KG
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Parking Lock
Warranty: 12 Months
Loading Capacity: 3000KG
Product Name: Intelligent Parking Lock
Rated Voltage: DC6V
Operating Current: ≤1.2A
Lifting Time: ≤4s
Rise Height: 390mm
Lower Height: 75mm
Control: ≤15m
Using Temperature: -10℃~+80℃
Boundary Dimension: 470*460*70mm
Weight: 6.5 kg
Información básica
Pago y Envío Términos
Packaging Details: carton box packing
Descripción de producto
Product Description
Specification
Type
Parking Lock
Place of Origin
China
Brand Name
Karsun
Model Number
JS-PL002
Warranty
12Months
Loading Capacity
3000KG
Product Name
Intelligent Parking Lock
Rated Voltage
DC6V
Operating Current
≤1.2A
Lifting Time
≤4s
Rise Height
390mm
Lower Height
75mm
Control Distance
≤15m
Using Temperature
-10℃~+80℃
Boundary Dimension
470*460*70mm
Weight
6.5 kg
Main Features
(1)Withstand pressure: The parking lock can withstand 3 tons of rolling without damage.
(2) Self-locking: When the parking lock is in the raised and lowered state, the external force other than the owner cannot be
permanently changed.
(3) Manual: You can pull up the parking lock rocker at any time to raise/lower to remove the battery for replacement.
(4) Sealing: IP68 protection class,completely prevent dust from entering and can be rinsed with water without any damage.
(5) Resistance skid：When the parking lock is subjected to an external force that cannot withstand the lifting/lowering process, it will automatically slip to protect the motor from damage.
(6) Low-power indication: When the battery power is not enough to maintain the normal operation of the parking lock, the parking lock will flash the light tube, the buzzer sounds a short warning to remind the user to replace the battery.
(7) External force alarm reset: When the parking lock is in the raised state, the rocker arm is forcibly reduced by external
force. Under the action of external force, the front/rear angle of the rocker arm changes, the parking lock will sound an
alarm.The external force removes the external force and reminds the space manager to handle it. After 3-5 seconds, the rocker automatically resets.
(8) Remote control and parking lock code: Unplug the battery plug and insert.When the indicator light is on(about 3
seconds)immediately press and hold the remote control double button for about 2 seconds. When the indicator lamp is flashing, the code is successful.
(9) Theft prevention: The position of the parking lock and the ground mounting holes is inside the cover, and the cover can only be opened by the user’s key to realized the parking lock.

Note:The parking lock must not be in an alarm state for a long time, otherwise it will run out of battery or damage the speakers.
Installation Instructions
(1) Grab the parking lock rocker by hand, then use the key to open the lock and lift the cover to install.
(2) According to the location of the three mounting holes on the parking lock foot, drill three holes with a diameter of 12mm and a depth of 50mm and install the M8 expansion bolt.
(3) Place the parking lock base hole into the expansion bolt, install and tighten the nut, that is , the installation is completed.
(4) When using, open the top cover and insert the battery plug into the parking lock socket, then put the battery flat.
(5) Put on the cover. Fit the upper and lower fixing blockers of the box(cover the upper cover and push the cover forward and lock the upper cover.
Packing & Delivery
